Product Specification and Size :
1):Standard: ASTM A312, ASTM A269, ASTM A213 etc.
2):Outer Diameter: 8mm-219mm
3):Wall thickness: 0.25mm-140mm
4):Grade: TP304, TP304L, TP316L, TP321, 904L etc.
5):Dimension according to ANSI B36.10 & B36.19

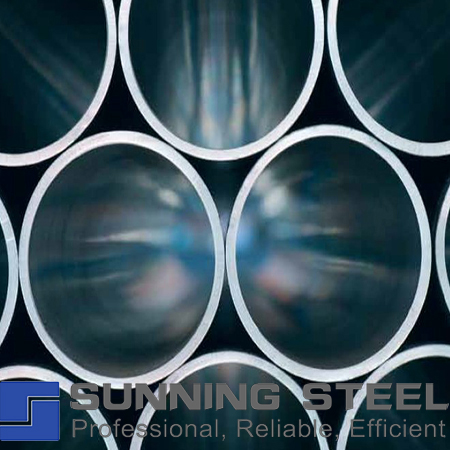

DESCRIPTION OF STAINLESS STEEL SANITARY TUBES
We have the most extensive list of ASTM A270 stainless steel sanitary pipe fittings in the country. We provide a variety of 3A sanitary tubes to suit the food, beverage, pharmaceutical or biotechnology industries. Our experienced team will solve any problems for you, and our fast transportation will make the products reach the scene quickly. We also offer a complete biopharmaceutical product line that complies with ASME BPE for highest purity.
Chemical Composition of Stainless steel sanitary tubes
| Chemical Composition | |||||||
| Grade | C | Si | Mn | P | S | Ni | Cr |
| 201 | 0.15 | 1.00 | 5.50-7.50 | 0.06 | 0.03 | 3.50-5.50 | 16.00-18.00 |
| 202 | 0.15 | 1.00 | 7.50-10.00 | 0.06 | 0.03 | 4.00-6.00 | 17.00-19.00 |
| 304 | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 8.00-11.00 | 18.00-20.00 |
| 304L | 0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 8.00-12.00 | 18.00-20.00 |
| 309 | 0.20 | 1.00 | 2.00 | 0.045 | 0.03 | 12.00-15.00 | 22.00-24.00 |
| 309S | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 12.00-15.00 | 22.00-24.00 |
| 310 | 0.25 | 1.50 | 2.00 | 0.045 | 0.03 | 19.00-22.00 | 24.00-26.00 |
| 310S | 0.08 | 1.50 | 2.00 | 0.035 | 0.03 | 19.00-22.00 | 24.00-26.00 |
| 316 | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
| 316L | 0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
| 316Ti | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
| 410 | 0.15 | 1.00 | 1.00 | 0.04 | 0.03 | 0.60 | 11.50-13.50 |
| 430 | 0.12 | 0.75 | 1.00 | 0.04 | 0.03 | 0.60 | 16.00-18.00 |
The inner and outer surfaces of stainless steel sanitary pipes are polished to the highest quality standards. Our 20 inch long polished OD / ID tubes meet ASTM A270 and 3A sanitary standards. Sanitary pipes, sanitary fittings, sanitary valves and other products are produced for the food and beverage, pharmaceutical and biotechnology industries. Our products are carefully designed to reduce the area of wrapping where bacteria can form and dock. The clip-on sanitary fittings are designed to be disassembled, cleaned and reassembled for the best sanitary product line.
