Product Specification and Size :
1):Standard: ASTM A312, ASTM A269, ASTM A213 etc.
2):Outer Diameter: 8mm-219mm
3):Wall thickness: 0.25mm-140mm
4):Grade: TP304, TP304L, TP316L, TP321, 904L etc.
5):Dimension according to ANSI B36.10 & B36.19

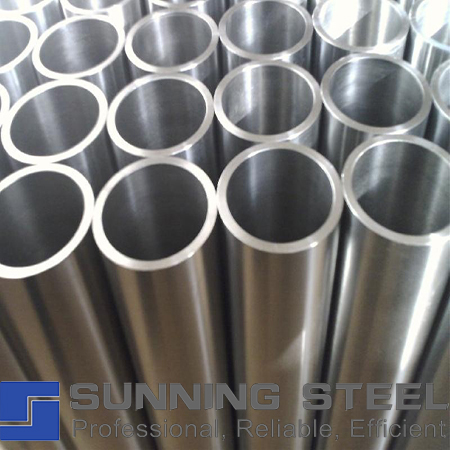

DESCRIPTION OF STAINLESS STEEL BOILER TUBES
SunningSteel exports steel tube boiler tubes (seamless steel tubes and welded steel tubes) according to the production method. Steel tube boiler specifications include overall dimensions (such as diameter or length) and wall thickness. Steel tube boiler tubes can be used for pipelines, thermal equipment, industrial machinery, petroleum geological exploration , Container, chemical and other special uses.
Chemical Composition of Stainless steel boiler tubes
| Chemical Composition | |||||||
| Grade | C | Si | Mn | P | S | Ni | Cr |
| 201 | 0.15 | 1.00 | 5.50-7.50 | 0.06 | 0.03 | 3.50-5.50 | 16.00-18.00 |
| 202 | 0.15 | 1.00 | 7.50-10.00 | 0.06 | 0.03 | 4.00-6.00 | 17.00-19.00 |
| 304 | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 8.00-11.00 | 18.00-20.00 |
| 304L | 0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 8.00-12.00 | 18.00-20.00 |
| 309 | 0.20 | 1.00 | 2.00 | 0.045 | 0.03 | 12.00-15.00 | 22.00-24.00 |
| 309S | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 12.00-15.00 | 22.00-24.00 |
| 310 | 0.25 | 1.50 | 2.00 | 0.045 | 0.03 | 19.00-22.00 | 24.00-26.00 |
| 310S | 0.08 | 1.50 | 2.00 | 0.035 | 0.03 | 19.00-22.00 | 24.00-26.00 |
| 316 | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
| 316L | 0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
| 316Ti | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
| 410 | 0.15 | 1.00 | 1.00 | 0.04 | 0.03 | 0.60 | 11.50-13.50 |
| 430 | 0.12 | 0.75 | 1.00 | 0.04 | 0.03 | 0.60 | 16.00-18.00 |
Stainless steel tubes for boilers are those tubes with high pressure and high temperature processing capabilities. In supercritical steam conditions or in highly corrosive environments, stainless steel can be used in the reheater and superheater sections of boilers. The higher the required efficiency, the more challenging the steel environment.
High-pressure stainless steel heating tubes and superheater tubes for boilers are made of high-quality raw materials, cold drawn, clean outer diameter / inner diameter, smooth surface, high pressure resistance, no deformation after cold bending, no cracks after cracking, etc.
