Product Specification and Size :
1):Standard: ASTM A312
2):Outer Diameter: 8mm-219mm
3):Wall thickness: 0.25mm-140mm
4):Grade: TP304, TP304L, TP316L, TP321, 904L etc.
5):Dimension according to ANSI B36.10 & B36.19

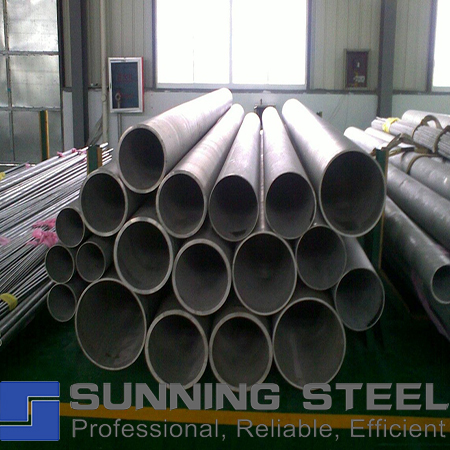

DESCRIPTION OF STAINLESS STEEL SEAMLESS PIPE SCH40
Compared with 304 alloy, 316 stainless steel has better corrosion resistance and pitting resistance, and higher strength at high temperatures. It can be formed by all methods, is easy to weld, and is a non-rusting, non-magnetic chromium-nickel alloy.
Note: Pipe sizes can be confusing because the listed sizes have little or no similarity to the actual size of the pipe, and in most cases the listed pipe sizes are closer to the “inner diameter” of the pipe. When the pipe is identified by the actual outer diameter (OD) and wall thickness (W), the size of the pipe is nominal, and the wall thickness is identified by a so-called schedule. Please refer to the outside diameter, inside diameter and actual dimensions of the wall.
Size of Stainless steel seamless pipe SCH40
| Nominal size [inches] | Outside diameter [inches] | Outside diameter [mm] | Wall thickness [inches] | Wall thickness [mm] | Weight [lb/ft] | Weight [kg/m] |
| 1/8 | 0,405 | 10,3 | 0,068 | 1,73 | 0,24 | 0,37 |
| 1/4 | 0,540 | 13,7 | 0,088 | 2,24 | 0,42 | 0,84 |
| 1/2 | 0,840 | 21,3 | 0,109 | 2,77 | 0,85 | 1,27 |
| 3/4 | 1,050 | 26,7 | 0,113 | 2,87 | 1,13 | 1,69 |
| 1 | 1,315 | 33,4 | 0,133 | 3,38 | 1,68 | 2,50 |
| 1 1/4 | 1,660 | 42,2 | 0,140 | 3,56 | 2,27 | 3,39 |
| 1 1/2 | 1,900 | 48,3 | 0,145 | 3,68 | 2,72 | 4,05 |
| 2 | 2,375 | 60,3 | 0,154 | 3,91 | 3,65 | 5,44 |
| 2 1/2 | 2,875 | 73,0 | 0,203 | 5,16 | 5,79 | 8,63 |
| 3 | 3,500 | 88,9 | 0,216 | 5,49 | 7,58 | 11,29 |
| 3 1/2 | 4,000 | 101,6 | 0,226 | 5,74 | 9,11 | 13,57 |
| 4 | 4,500 | 114,3 | 0,237 | 6,02 | 10,79 | 16,07 |
| 5 | 5,563 | 141,3 | 0,258 | 6,55 | 14,62 | 21,77 |
| 6 | 6,625 | 168,3 | 0,280 | 7,11 | 18,97 | 28,26 |
| 8 | 8,625 | 219,1 | 0,322 | 8,18 | 28,55 | 42,55 |
| 10 | 10,750 | 273,0 | 0,365 | 9,27 | 40,48 | 60,31 |
| 12 | 12,750 | 323,8 | 0,406 | 10,31 | 53,52 | 79,73 |
| 14 | 14 | 355,6 | 0,375 | 11,13 | 54,57 | 94,55 |
| 16 | 16 | 406,4 | 0,500 | 12,70 | 82,77 | 123,30 |
| 18 | 18 | 457,0 | 0,562 | 14,27 | 104,67 | 155,80 |
| 20 | 20 | 508,0 | 0,594 | 15,09 | 123,11 | 183,42 |
| 24 | 24 | 610,0 | 0,688 | 17,48 | 171,29 | 255,41 |
| 32 | 32 | 813,0 | 0,688 | 17,48 | 230,08 | 342,91 |
With plans for 40 kinds of stainless steel pipe sizes, Sunning Steel Special Steel is known as one of the largest stainless steel pipe suppliers and manufacturers in China. All stainless steel seamless pipe fittings and welded parts provide high-price and high-quality quotations.
It is planned that the size of 40 stainless steel pipes, Sunning Special Steel, can also provide non-standard stainless steel pipes, if you have any questions, please contact us.
