Product Specification and Size :
1):Standard: ASTM A276, .
2):Diameter:20mm-150mm
3):Surface: 2B, BA, NO.4, 8K, HL, NO.1
4):Grade: 321, 304, 316, 321, 904L ,201,430etc
5):MOQ:1Ton

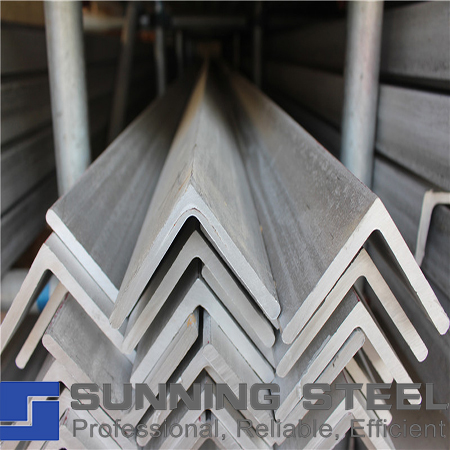

DESCRIPTION OF 201 SS ANGLE BAR
Stainless steel 201 angle steel forming:
Type 201 and 301 stainless steel have similar bending, forming and tensile properties
201 stainless steel fillet welding:
Type 201 can be welded to 18% chromium and 8% nickel steel by all conventional methods. Filler metals for conventional chromium-nickel analysis can be used. Like other austenitic stainless steels (carbon content cannot be controlled below 0.03%), Type 201 is also prone to intergranular corrosion in the heat affected zone of the weld.
Chemical Composition of 201 SS angle bar
| Grade | C | Si | Mn | P≤ | S≤ | Cr | Mo | Ni | Other |
| 201 J1 Mid Copper | 0.104 | 0.410 | 10.070 | 0.036 | 0.03 | 13.920 | – | 1.210 | Cu 0.81 |
| 201 J2 | 0.128 | 0.490 | 9.570 | 0.045 | 0.01 | 13.290 | – | 1.370 | Cu 0.33 |
| 201 J3 Low Copper | 0.127 | 0.410 | 9.050 | 0.039 | 0.02 | 14.500 | 0.02 | 1.300 | Cu 0.59 |
| 201 J4 High Copper | 0.060 | 0.390 | 9.330 | 0.036 | 0.02 | 14.860 | – | 1.270 | Cu 1.57 |
| 201 J5 | 0.135 | 0.584 | 10.727 | 0.043 | 0.02 | 13.269 | 1.451 | Cu 0.07 |
Outside of marine and highly corrosive environments, stainless steel angle steel 304 can provide high strength and good corrosion resistance. If your project is in either environment, select “Stainless Steel Corner 316”. 304 is commonly used in the aerospace, food and beverage industries, pressure vessels, architectural design and decoration, low temperature applications, and chemical processing equipment.
